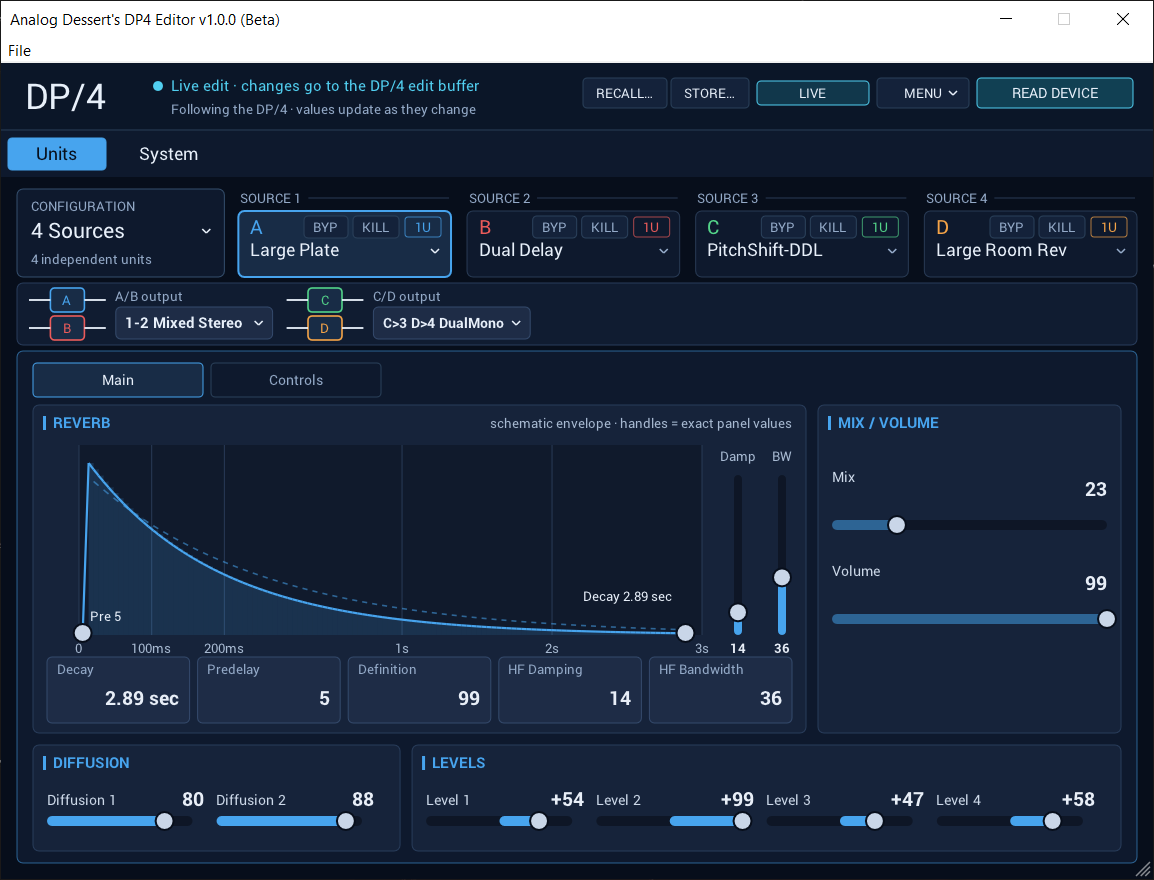

DP4 Editor with four sources and Large Plate reverb controls.

DP4 Editor

Turn a knob on the DP/4 or on screen, and the other one follows.

The editor and the DP/4 stay in sync in both directions, one parameter at a time, so you never wait for a bank dump.

$49.00

One license covers 2 computers

Buy now
  • Standalone app and VST3 plug-in for Mac and Windows
  • AU and AUv3 on Mac
  • Ensoniq DP/4
  • 1992
  • 4 effects units
  • 2-way sync
  • Mac + Windows
DP/4
Seamless bi-directional sync

The DP/4 was the first effects unit I owned, back when I was chasing the warm analog sound on old Daft Punk records. It is four effects units in one box from 1992, and its sounds have real character: the strange VanderPol Filter, grainy metallic reverbs that turn into great lo-fi reverbs once you cut the highs, and tremolos, phasers and flangers I do not hear anywhere else.

Like most gear from that era, it has a few small buttons and one line of text. I made this DP4 editor so you can see and edit all of it on one screen, in sync with the unit.

Read more about the Ensoniq DP/4 at Vintage Digital.

Four processors, one window

The DP/4 is four effects units in one box. The editor shows units A, B, C and D together, with the routing between them. Run four separate effects on four sources, or chain the units into one multi-effects path.

Every algorithm, including the hidden ones

The editor loads all 48 DP/4 effects on any unit, including ✨ Ring Modulator and Octave Divider ✨, two effects that no factory preset uses. They are there in every copy, one click away.

Load any algorithm on any unit: reverbs, delays, modulation, pitch, dynamics, EQ, amp and vocoder. Parameter names and ranges come from the DP/4 firmware, so they match the front panel.

  • Reverbs (11)
    • Gated Reverb
    • Hall Reverb
    • Large Plate and Small Plate
    • Large Room and Small Room
    • Non-Linear Reverb 1, 2 and 3
    • Reverse Reverb 1 and 2
  • Delays (5)
    • 3.3 sec DDL (2 units)
    • Dual Delay
    • EQ-DDL with LFO
    • MultiTap Delay
    • Tempo Delay
  • Modulation (9)
    • 8 Voice Chorus
    • EQ-Chorus-DDL
    • EQ-Panner-DDL
    • EQ-Tremolo-DDL
    • EQ-Vibrato-DDL
    • Flanger and EQ-Flanger-DDL
    • Phaser-DDL
    • Rotating Speaker
  • Pitch (6)
    • Fast Pitch Shift
    • ✨ Octave Divider (hidden) ✨
    • Pitch Shift (2 units)
    • Pitch Shift-DDL
    • Pitch Shifter
    • ✨ Ring Modulator (hidden) ✨
  • Amps and filters (9)
    • Guitar Amp 1, 2 and 3
    • Parametric EQ
    • Rumble Filter
    • Speaker Cabinet
    • Tunable Speaker
    • VanderPol Filter
    • VCF-Distortion
  • Dynamics (6)
    • De-esser
    • Ducker/Gate
    • EQ-Compressor
    • Expander and Inverse Expander
    • Keyed Expander
  • Other (2)
    • Sine/Noise Generator
    • Vocoder (four bands)

1U, 2U, 4U and Config presets

A 1U preset loads one unit. A 2U preset loads a pair, A+B or C+D. A 4U preset loads all four units. A Config preset sets the sources and the routing: 1, 2, 3 or 4 sources. The editor shows which presets fit the unit and configuration you have.

DP4 Editor with two sources, units A+B and C+D as pairs.
Two sources: units A+B and C+D work as pairs.

A real librarian

Browse the ROM bank: 200 factory presets, 50 of each type. Read the RAM bank from your DP/4: 200 user slots. Save the edit buffer, the System settings, or the full RAM bank to your computer. Restore a backup to the DP/4 when you need it.

DP4 Editor dialog to recall a 2-unit preset from the RAM bank.
Recall a 2-unit preset from the RAM bank to units A and B.

Also in the DP4 editor

  • Live editing
    Each change goes out over SysEx and is read back. The standalone app also follows the front panel.
  • Safe banks
    It backs up RAM and System before the first permanent write of each session, in approximately 16 seconds. You can also protect Config 1.
  • Scenes
    Save the whole DP/4 state as a scene file, and open it later to see every unit, algorithm and parameter.

Getting started with the DP4 editor

  • Connect the DP/4’s MIDI IN and MIDI OUT to your computer’s MIDI interface.
  • In a DAW, route the plug-in’s MIDI output to the DP/4 and the DP/4’s MIDI back to the plug-in.
  • Some DAWs do not pass SysEx from plug-ins. If the unit does not respond, use the standalone app.

Screenshots

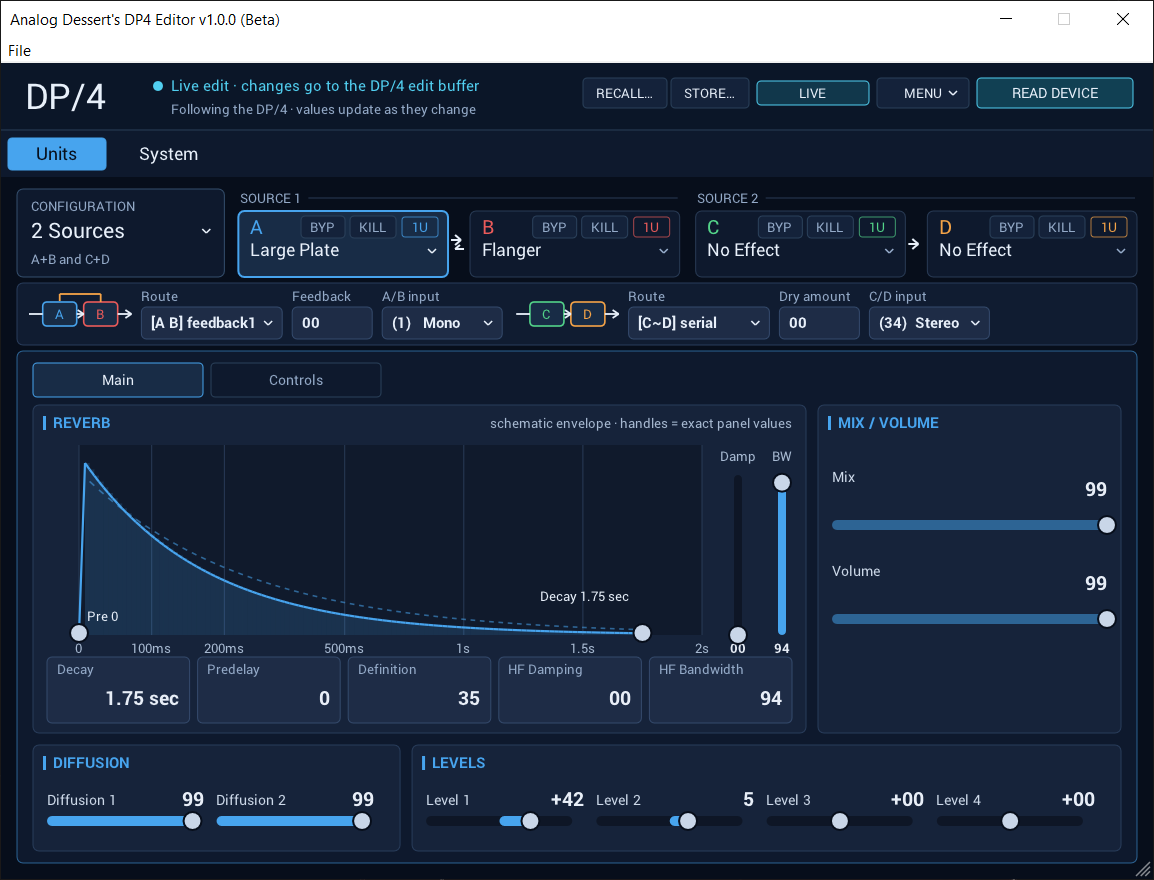

DP4 Editor with two sources and Large Plate reverb controls.

Two sources and Large Plate reverb

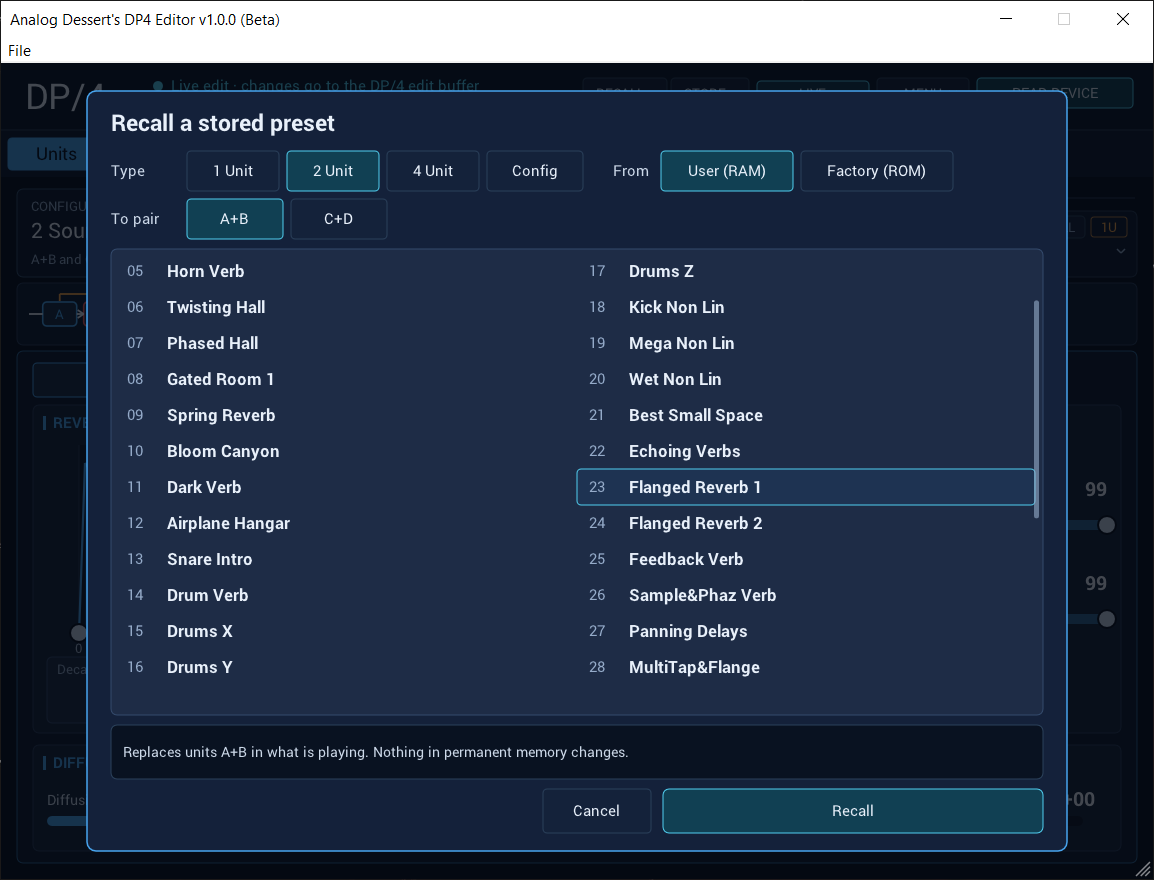

DP4 Editor Recall a stored preset dialog with 2 Unit selected.

Recall a stored preset with 2 Unit selected

Pricing

DP4 Editor

  • VST3
  • AUv3
  • AU
  • Mac 10.14+
  • Windows
$49.00

One license covers 2 computers
